Route 494 map & schedule

Map and Schedule Design

Client: Suburban Transit Association

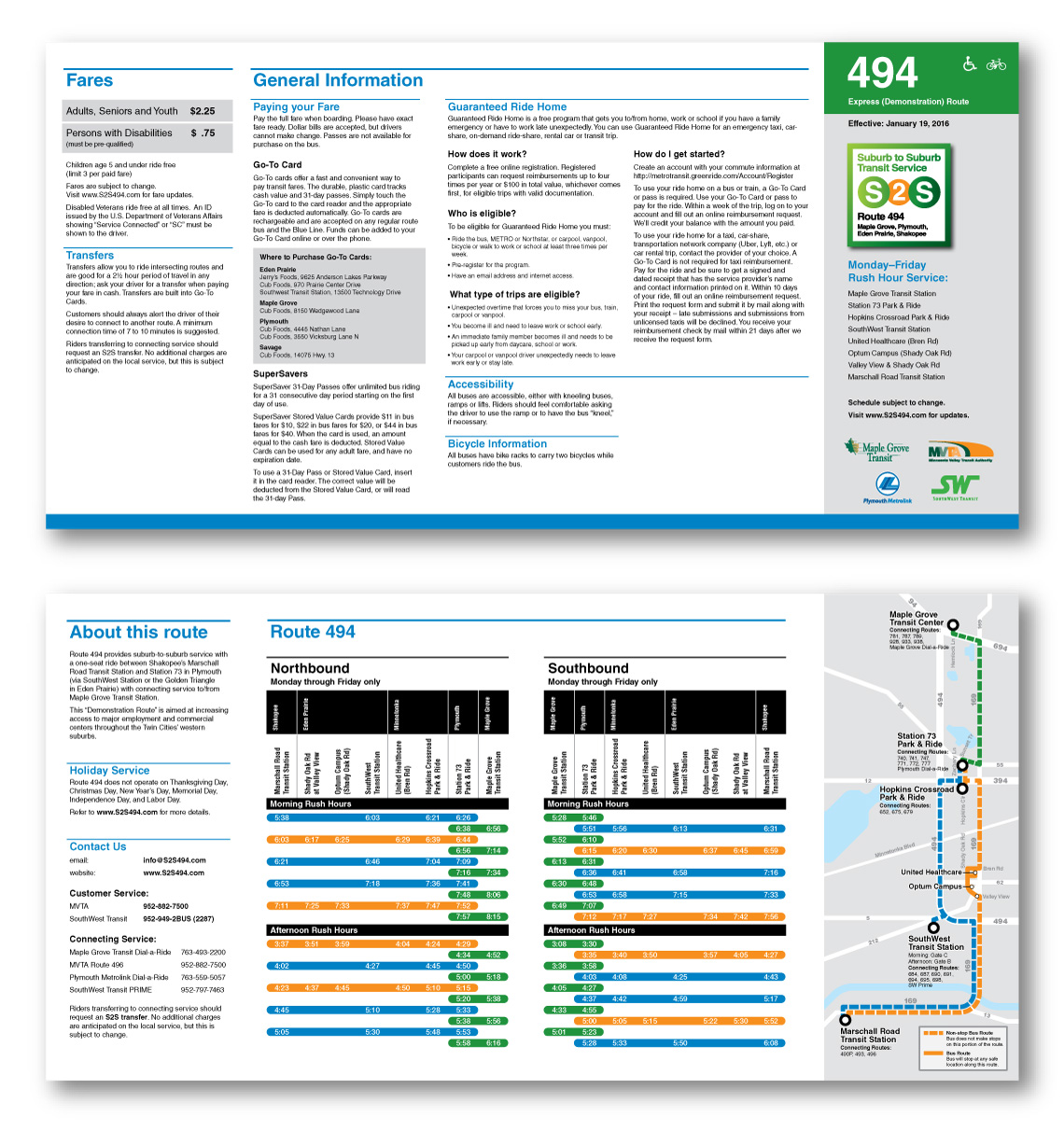

Route 494 provides suburb-to-suburb service with a one-seat ride between Shakopee's Marschall Road Transit Station and Station 73 in Plymouth (via SouthWest Station or the Golden Triangle in Eden Prairie) with connecting service to/from Maple Grove Transit Station.

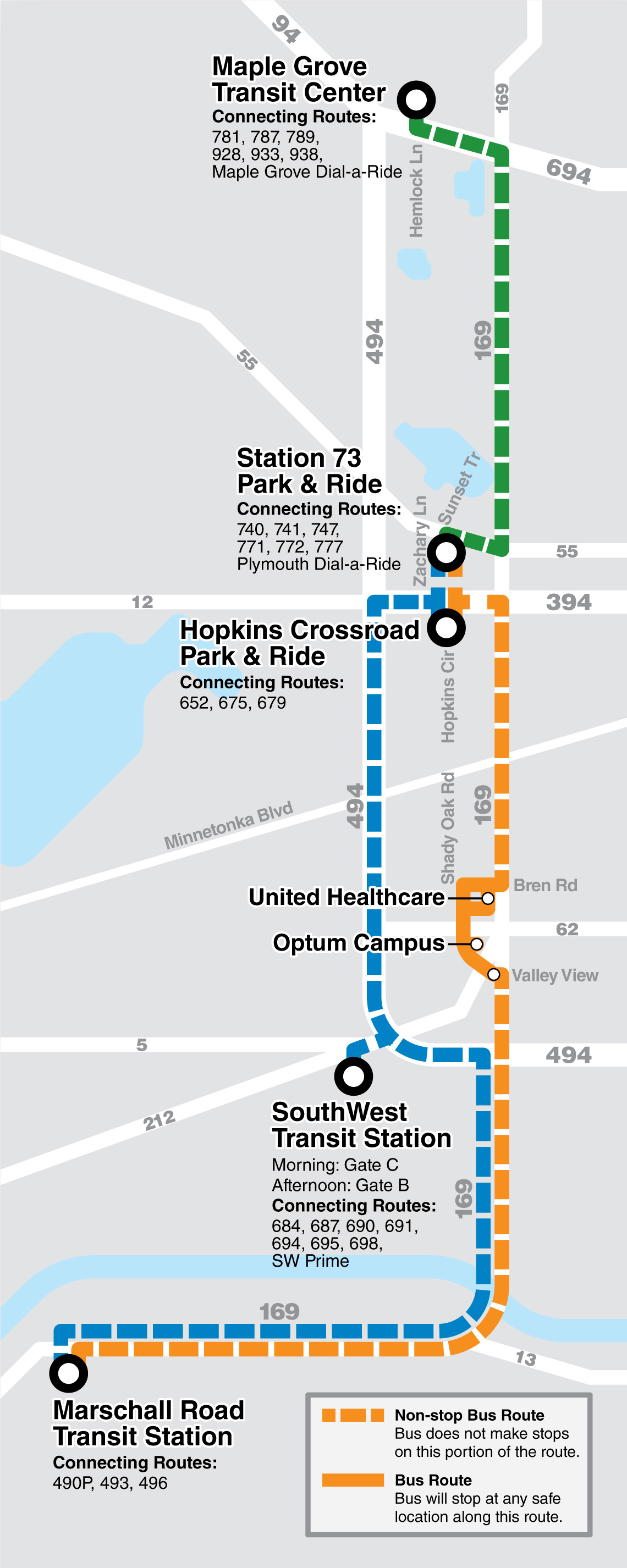

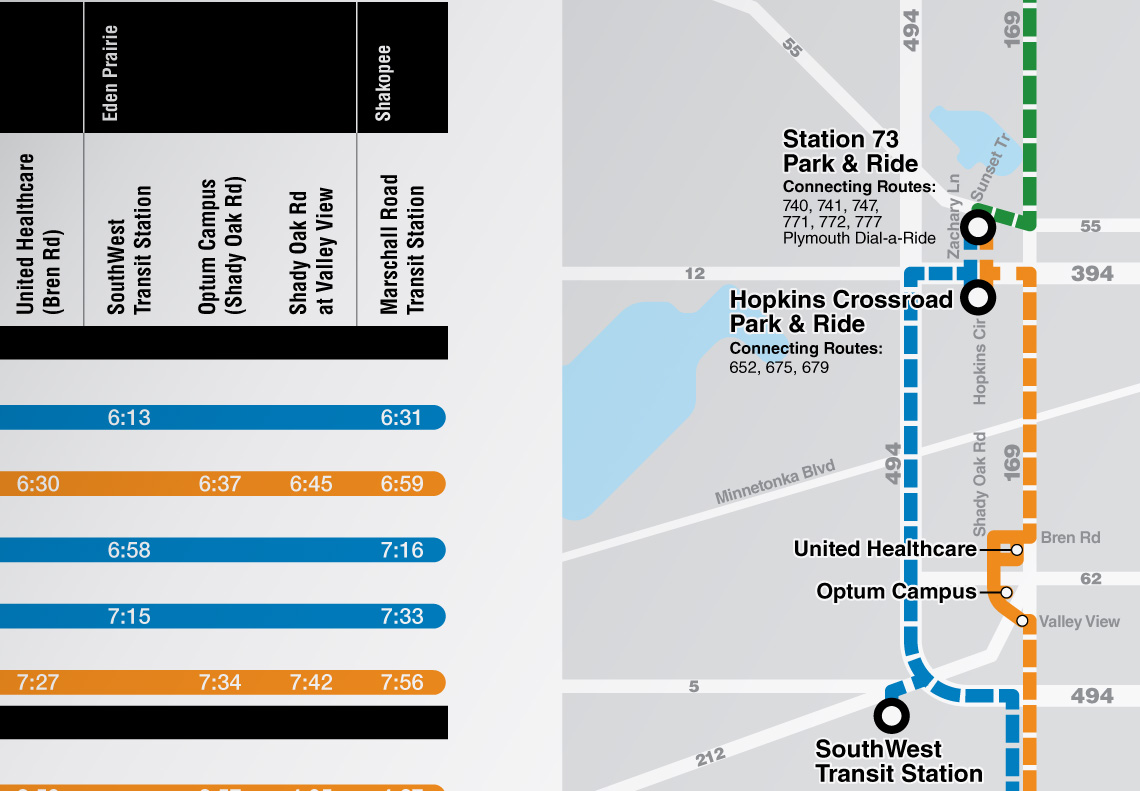

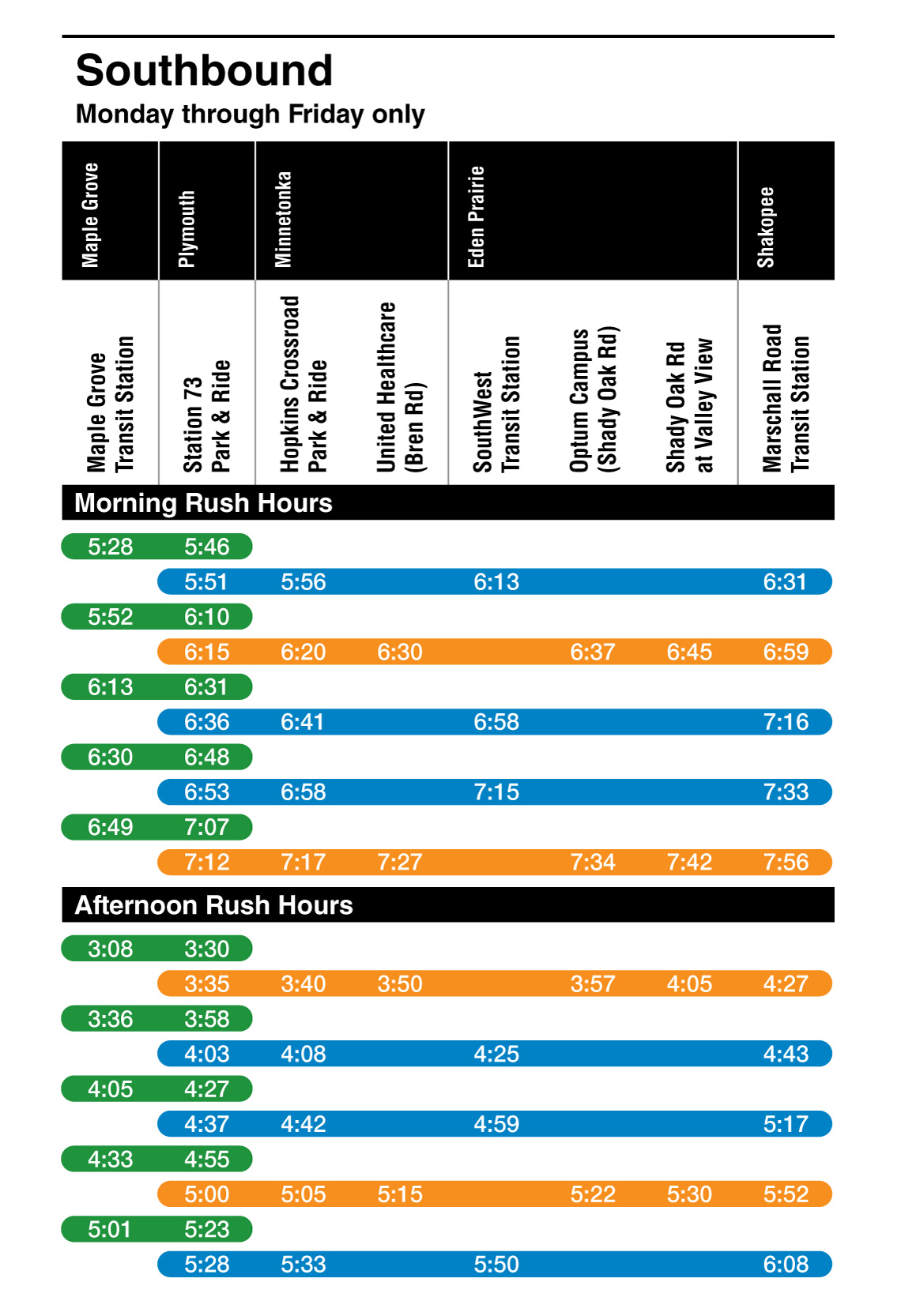

Innovative use of color in the timetables creates an easy-to-read connection between the map and timetables. This visual connection makes it easy for a rider to find the appropriate portion of the timetable for their trip, while allowing the use of a single space-saving timetable, as opposed to splitting each timetable into three separate timetables.
